The S251 Load Cell is a low profile, single point sensor that offers high accuracy for force measurements. These miniature load cells are only 0.71″ high, with a 3,000 Ω thin film strain gage bridge for extremely low power consumption. Capacities range from 200 g to 10 kg-force, full scale. The S251 and the S252 are very similar load cells but the S251 is designed with holes on one of its ends.

Features:
Applications:
· Stainless Steel
· Compact, low profile design
· Long-term stability
· Low power consumption
· Low hysteresis		· Medical instruments
· Medical scales
· Low profile scales
· Postal scales
· Check weighing



Download Datasheet

Resource File: S251 Application Notes & Mounting Suggestions

S251 Load Cell

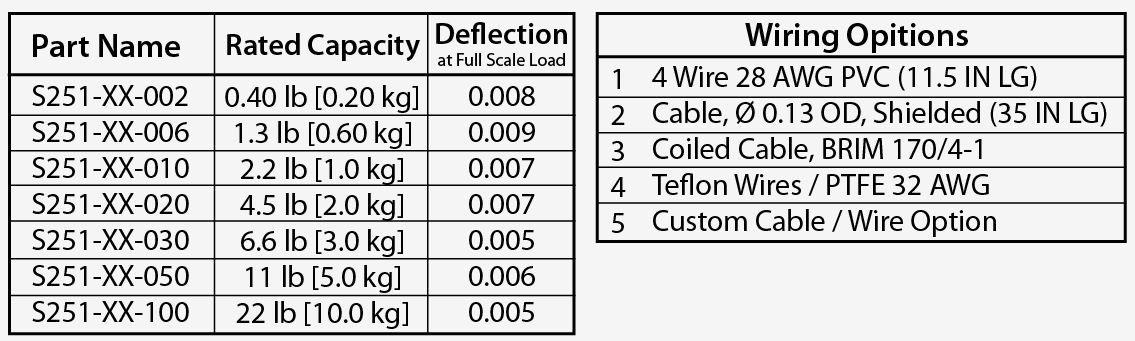

Capacity0.2, 0.6, 1, 2, 3, 5, 10 kg-force
Hysteresis< 0.02% R.O.
Non-Repeatability< 0.02% R.O.
