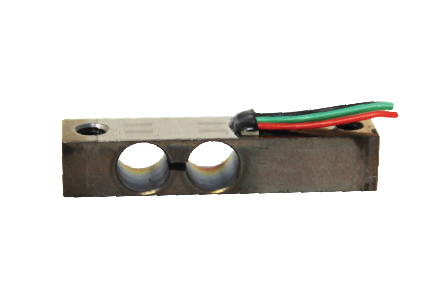

  4. S215 Miniature Load Cell

The S215 Ultra-Low Profile, Single Point Load Cell is intended for limited space applications requiring accurate and reliable full-scale force measurements (2, 4, 12, and 22 pounds-force). Its 10,000 Ω Wheatstone bridge offers extremely low power consumption for extended battery life in portable products. Mounting is from the bottom to minimize the total height of the assembly. Options on various specifications and mounting configurations are available.

Ask Questions / Get Quote

Features:
Applications:

· Single point platform
· Compact, low profile design
· High, long term stability
· Low power consumption
· Low hysteresis
· Economical

 · Medical instrumentation
· Force measurement
· Laboratory use
· Robotics
· Scales



Download Datasheet  Load Cell Handling  Application Note

S215 Load Cell
Capacity 2, 4, 12 & 22 lb
Hysteresis +/- 0.07% FSO
Accuracy +/- 0.03% R.O.
S215 Application Notes

The S215 Load Cells are monolithic stainless steel-bodied structures with a proprietary thin-film technology strain gauge applied, capable of producing a linear, analog voltage output in response to loadings of 2 to 22 lbs

View Resource
