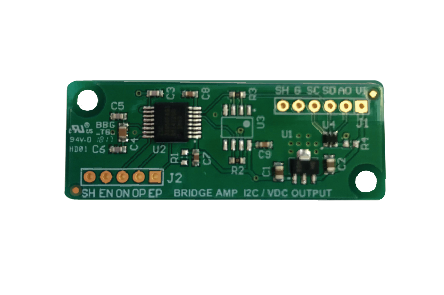

E110 Signal Conditioner Board (I²C/VDC)

This standard Signal Conditioner can be used in partnership with our Load Cell, Occlusion, and Pressure sensor lines. Providing I2C or voltage output.



I2C Output  Download Data Sheet  E110 Connection Guide Ask Questions / Get Quote



Read E110 data using an Arduino with this simple code example.

E110 Circuit
For Product Lines Load Cells, Pressure, & Occlusion Sensors
Inputs 5-24 VDC
Outputs I2C or 0.5-4.5 VDC
Technical Note: Signal Conditioning – I2C Output

Technical Note: Signal Conditioning – I2C Output I2C (Inter-Integrated Circuit) is a communication protocol that is often used to transfer data from sensors to processors and micro-controllers. Many of our sensors are provided with an I2C output or can be …

View Resource
Technical Note: Resolution and Accuracy

Resolution deals with the lowest force or voltage detectable

Accuracy means resolving that detected force and reliably normalizing it to an (international) standard.

View Resource
