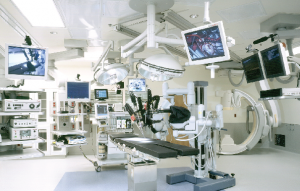

SMD miniature pressure sensor technology provides medical devices with precise non-invasive measurement of pressure and flow, while offering control and validation of fluid deliveries in disposable sets. The extreme accuracy and repeatability inherent in our OEM pressure sensor solutions provide key advantages for a variety of mission-critical applications.

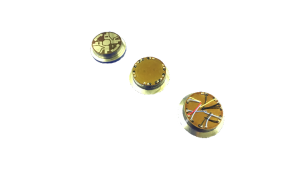

Our thin film strain gauge process gives our sensors unsurpassed long term stability, even in the harshest environments. With our proprietary process, SMD can craft standard and custom pressure sensor designs with short lead times using nearly any material including aluminum, stainless steel, Hastelloy™ and sapphire.

Customers have the option of welding these pressure sensors to a fitting or component of their choice. SMD Sensors can provide these welding services.

Need an easy way to find exactly the right pressure sensor? Jump to our Product Selector:

PRODUCT SELECTOR

Product Selector

UNITS
MAXIMUM PRESSURE (lb)
TYPE
DIAMETER (in.)
HEIGHT (in.)
 Sensor ModelOrdering Part Number

Maximum Pressure
psi

Diameter
in.

Height
in.

Type


B354 – 016

129-6777-016

232.06

0.354

0.157

Stainless Steel

View Details
B354 – 025

129-6777-025

362.59

0.354

0.157

Stainless Steel

View Details
B354 – 040

129-6777-040

580.15

0.354

0.157

Stainless Steel

View Details
B354 – 060

129-6777-060

870.22

0.354

0.157

Stainless Steel

View Details
B354 – 100

129-6777-100

1450.38

0.354

0.157

Stainless Steel

View Details
B354 – 160

129-6777-160

2320.60

0.354

0.157

Stainless Steel

View Details
B354 – 250

129-6777-250

3625.94

0.354

0.157

Stainless Steel

View Details
B354 – 400

129-6777-400

5801.51

0.354

0.157

Stainless Steel

View Details
B354 – 600

129-6777-600

8702.26

0.354

0.157

Stainless Steel

View Details
B472 Pressure Sensor B472 – 006

130-6778-006

87.02

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 010

130-6778-010

145.03

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 016

130-6778-016

232.06

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 025

130-6778-025

362.59

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 040

130-6778-040

580.15

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 060

130-6778-060

870.22

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 100

130-6778-100

1450.38

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 160

130-6778-160

2320.6

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 1K0

130-6778-1K0

14503.8

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 250

130-6778-250

3625.94

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 400

130-6778-400

5801.51

0.471

0.236

Stainless Steel

View Details
B472 Pressure Sensor B472 – 600

130-6778-600

8702.26

0.471

0.236

Stainless Steel

View Details

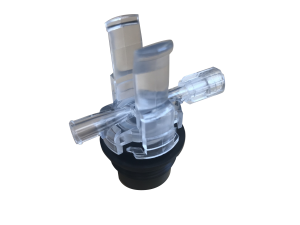

P30 – 030

SMD7818-030

30.0

1.20

0.938

Non-Invasive

View Details
P571 Pressure Sensor P571 – 100

SMD2495-100

100.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 1000

SMD2495-1000

1000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 10000

SMD2495-10000

10000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 12000

SMD2495-12000

12000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 1500

SMD2495-1500

1500.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 15000

SMD2495-15000

15000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 160

SMD2495-160

160.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 3000

SMD2495-3000

3000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 4000

SMD2495-4000

4000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 500

SMD2495-500

500.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 5000

SMD2495-5000

5000.0

0.571

0.219

Stainless Steel

View Details
P571 Pressure Sensor P571 – 6000

SMD2495-6000

6000.0

0.571

0.219

Stainless Steel

View Details
P940 Pressure Sensor P940 – 030

SMD2206-030

30.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 050

SMD2206-050

50.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 100

SMD2206-100

100.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 1000

SMD2206-1000

1000.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 150

SMD2206-150

150.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 200

SMD2206-200

200.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 2000

SMD2206-2000

2000.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 2500

SMD2206-2500

2500.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 – 3000

SMD2206-3000

3000.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940 -1500

SMD2206-1500

1500.0

0.940

0.20

Stainless Steel

View Details
P940 Pressure Sensor P940-300

SMD2206-300

300.0

0.940

0.20

Stainless Steel

View Details
