The S401 Stainless Steel Load Cell is a high-quality, stainless steel, single point sensor available in four standard ranges measuring force from 100 N to 1000 N. A 5,000Ω Wheatstone bridge and thin-film strain gauge provide ultra low power consumption and unmatched long term stability. If your range requirements are different, contact us and we will work to meet the desired parameters.

Ask Questions / Get Quote

Features:
Applications:
· Stainless steel
· Compact, low profile design
· Long-term stability
· Low power consumption
· Low hysteresis		 · Orthopedic instruments
· Press tool
· Printing
· Process control
· Hydraulics force control



Download Datasheet Load Cell Handling  Application Note

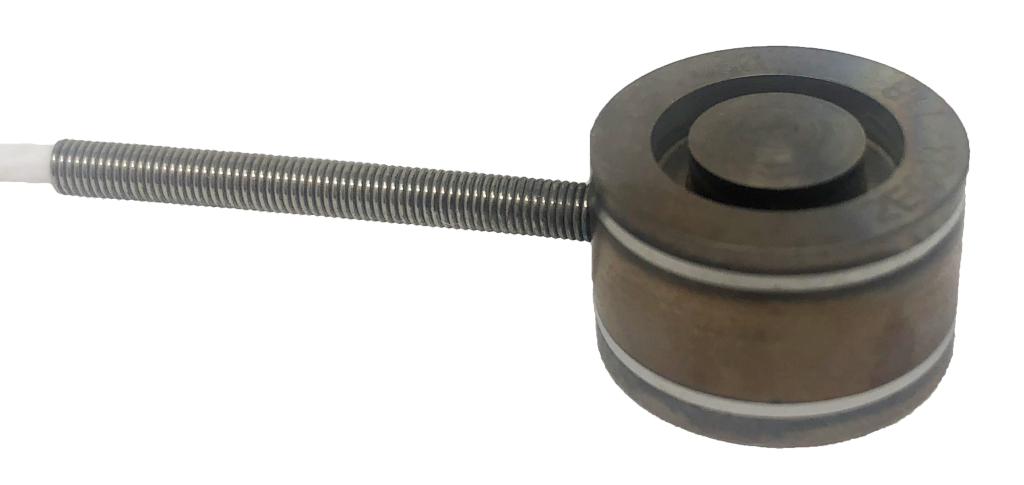

1000 N button load cell
S401 Load Cell
Capacity 100, 200, 500, 1000 N
Hysteresis +/- 0.03% FSO
Non-Repeatability +/- 0.01% FSO
S400 – S401 – S402 – S420 Application Notes

The S400, S401, S402, & S420 Load Cells are a family of stainless steel-bodied assemblies containing a monolithic sensing element with a strain gage applied, capable of producing a linear, analog voltage output in response to loadings of 0‐50 lbs up to 1000 lbs

View Resource
